Description

The optimal controller for temperature control in applications requiring a simple heat treatment curve. Very easy to use and understand. Supports S, J, R, K,  type thermocouples. Possibility to set the ramp (60, 120, 240, 360, 480 oC / h or 100% power) – the temperature reaches 580 oC, and then the final temperature to which the controller will come with automatic speed, finally we enter the holding time at the maximum temperature of the process (0, 0:10, 0:20, 0:30 or 1:00 h: min). 1 program set is saved automatically.

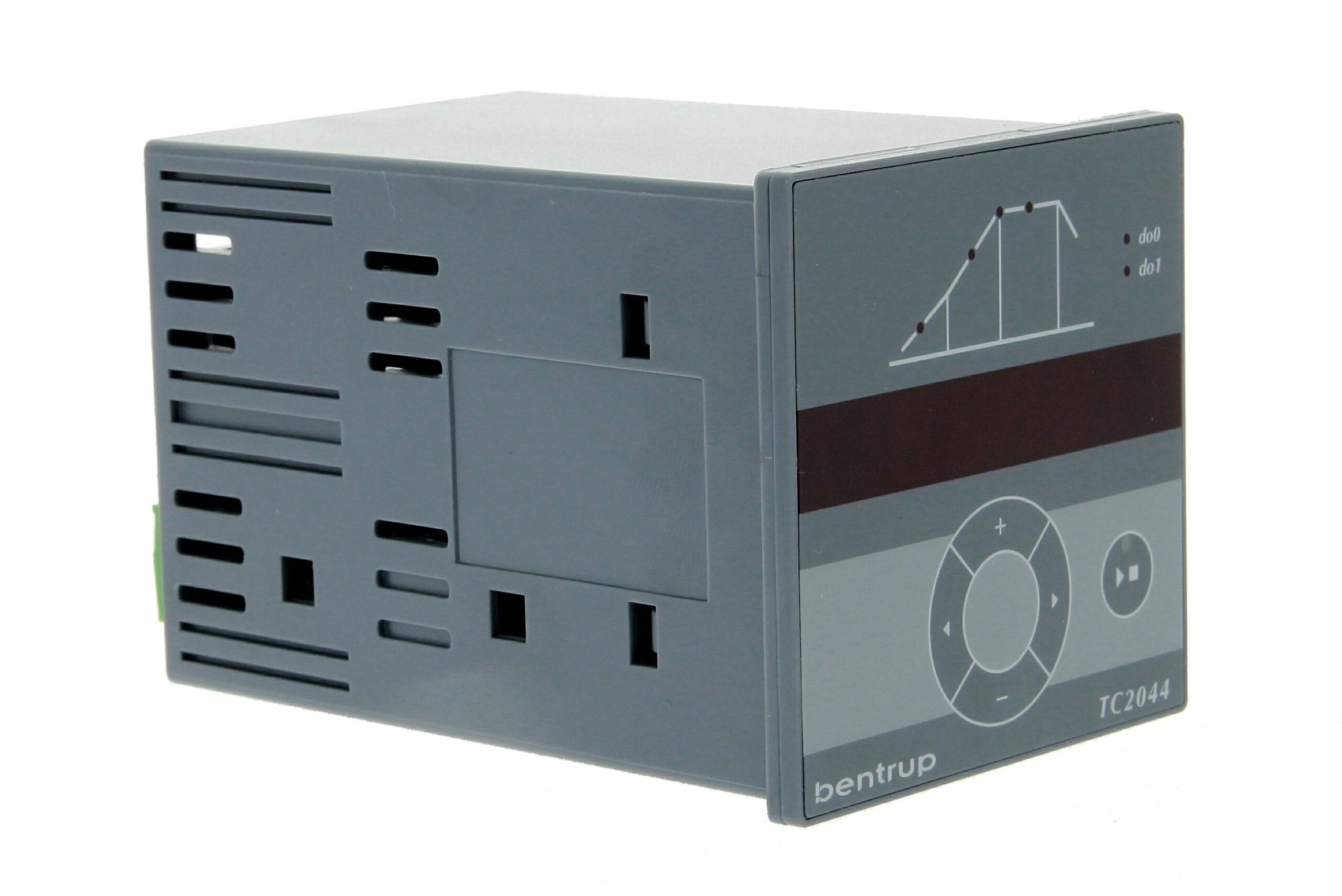

Industrial series regulators are small / 72x72mm, 110mm deep / and allow ergonomic mounting on the control cabinet.

Kit contents:
[SW2] 2 add. control outputs
[DO2] 2 x SSR outputs
[AO2] 2 x analogue outputs
[DI2] 2 x digital inputs
fixing set
manual
box
