Description

Very efficient controller for all applications in ceramics, glass, plastics, metals, etc. Fully flexible curve of thermal treatment (burning / heating) and controlled cooling and setting the time delay of the start of the process. Possibility to save 3 programs in each of 9 segments (possible option “TC2088e” – 300 segments – eg 20 programs / 15 segments each). Display showing the segment in graphic form. The controller ensures high operational safety of the furnace. The controller is dedicated to temperature control in very demanding applications (complex heat treatment curve). Simple to use and understand. Supports S, J, R, K, B type thermocouples.

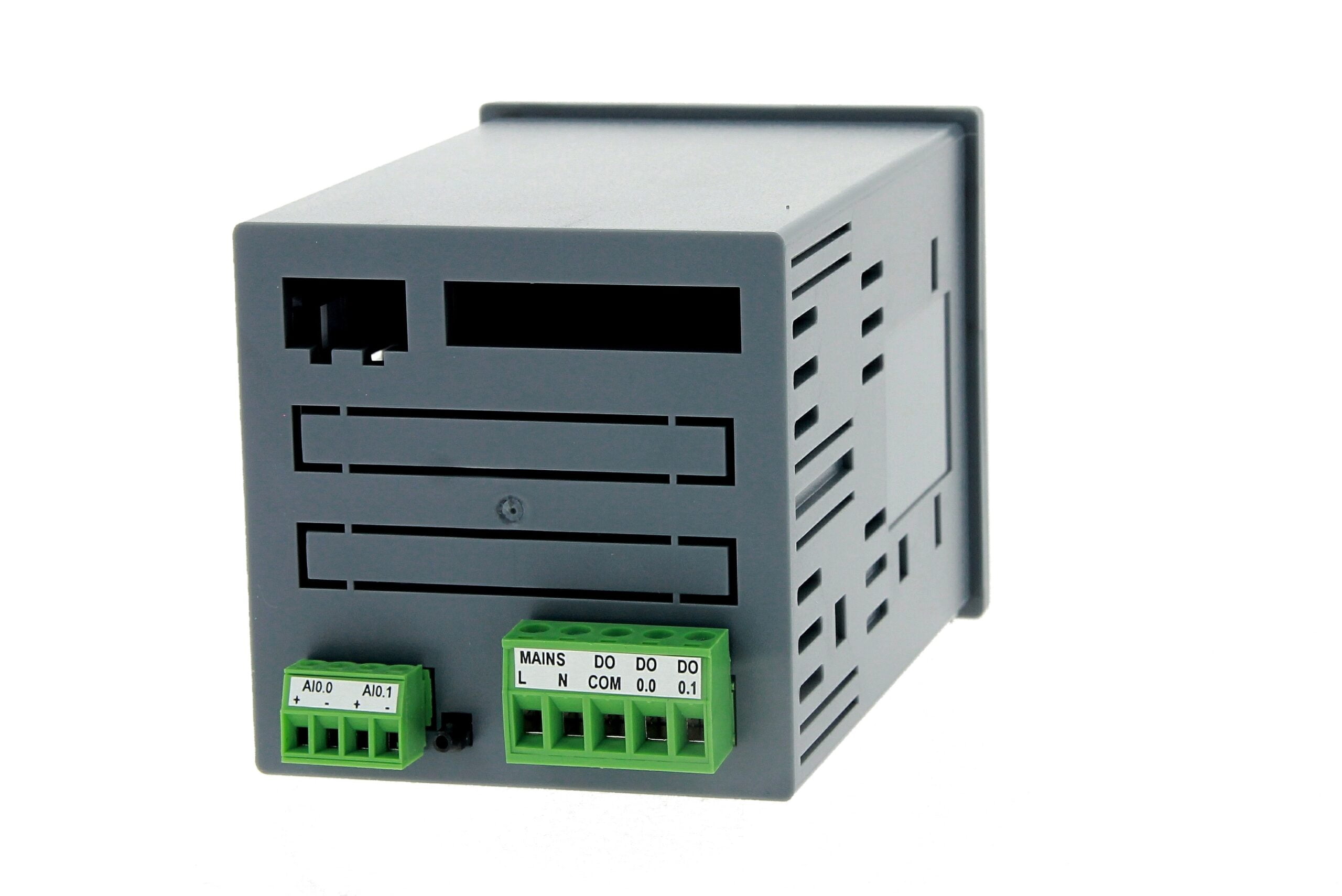

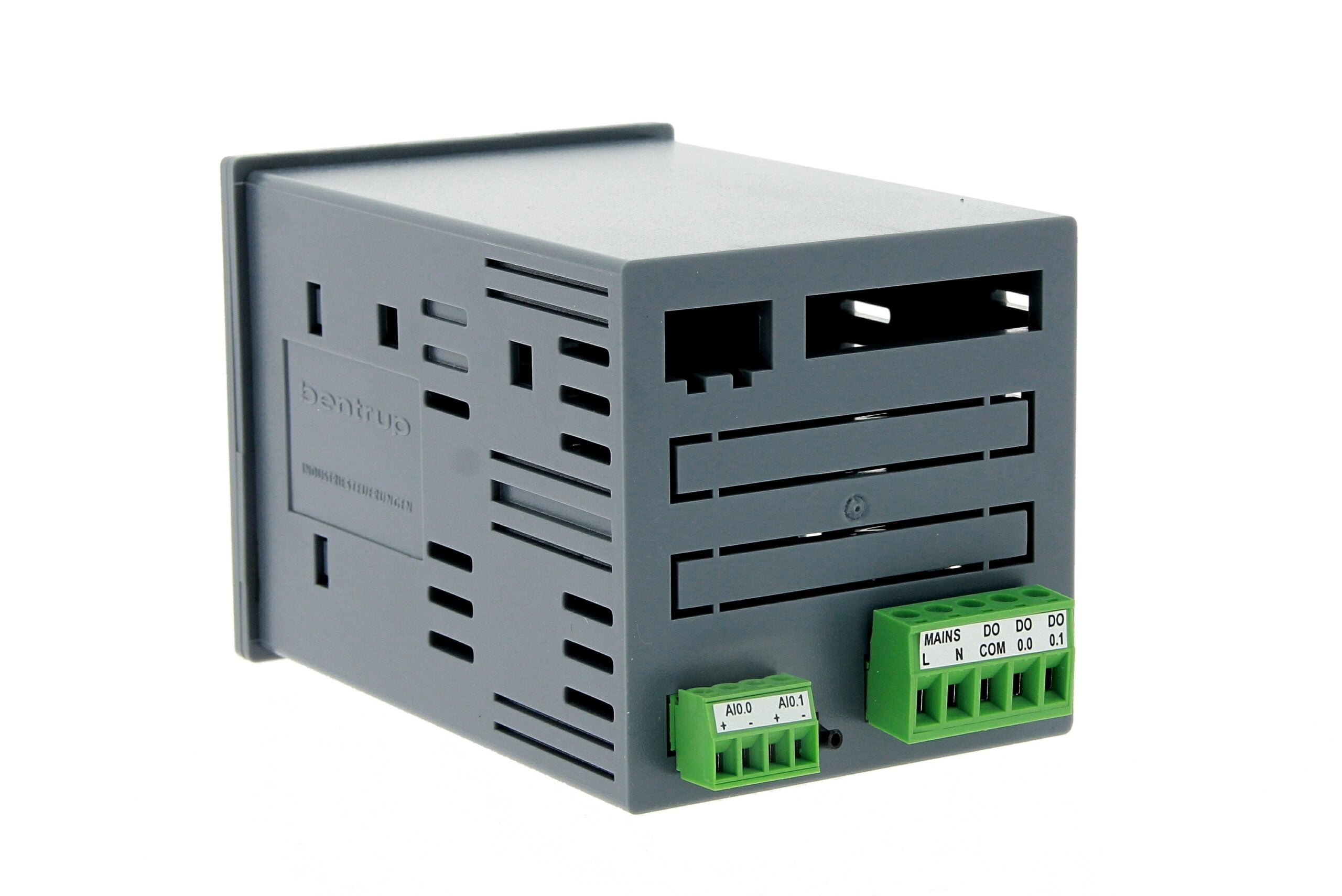

Industrial series regulators are small / 72x72mm, 110mm deep / and allow ergonomic mounting on the control cabinet.

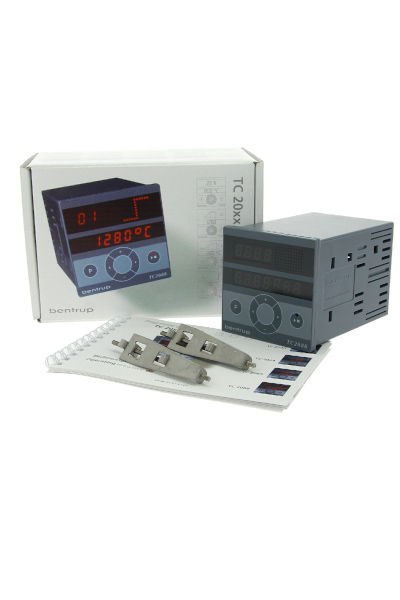

Kit contents:
[SW2] 2 add. control outputs
[DO2] 2 x SSR outputs
[AO2] 2 x analogue outputs
[DI2] 2 x digital inputs
fixing set
manual
box
